Weighing systems
We offer a variety of options for dosing, weighing, and filling your raw materials. We would be happy to design a system tailored to your needs.
Container scale
Hopper scales are customized by the designer to suit local conditions. There are virtually no restrictions regarding size, shape, or accuracy.
| Technical data: | |
|---|---|
|
material |
stainless steel, normal steel, aluminum |
|
Inlet |
Rubber inlet or ventilation inlet possible |
| Discharge systems | Special discharge aids pneumatic and mechanical |
| Abmessungen | Dimensions |
| barrier system | Rotating flap or special clamping device |

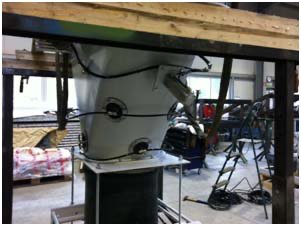

B&K Hopper Scale
Example BK120/3/5-S,
120 kg hopper scale
for 5 components. In this case, the dosing system is designed to allow 3 components to be dosed during the mixing cycle. This is always adapted to the existing system.
B&K Double Hopper Scale
Example: BK15/1/1-S + BK10/3/4-S,
15 kg hopper scale for 1 component and 10 kg hopper scale for 3 components. Both scales can empty into the mixer via a shared drain system. Special clamps serve as shut-off devices.
Suction container scales
Suction scales are a cost-effective solution for conveying products over short distances, simultaneously dosing and weighing them. These are then fed to the mixer via special discharge systems.
| Technical data: | |
|---|---|
|
Execution |
Suction conveying |
|
material |
Stainless steel, normal steel, PE or rubber |
| Services | 10kg/h to 5t/h (must be agreed on a case-by-case basis) |
| Conveyor path | 1m to 80m, depending on the product |
B&K Suction Container Scale (Example)
BK 100/4/5-DK 100kg suction container scale for components and a conveyor line of 80m.
System design:
A suction scale always depends on the associated dosing system. We would be happy to design your suction dosing system and supply the dosing systems for you.
Belt scales
Belt scale systems are available in a wide variety of designs, including stand-alone scales, such as polymer scales, and complete weighing and transport systems with loading, transport, weighing, and retrieval.
| Technical data: | |
|---|---|
|
material |
stainless steel, normal steel, aluminum |
|
Dimensions |
freely dimensionable |
| belt | rubber, textile |
| Atex | The belts can be designed according to Atex Zone. |
Bag Transport and Weighing Systems
The bags are placed on a bag feed roller conveyor. From there, they are transported via an elevator to the target level, where they are automatically conveyed to a belt scale. There, they are weighed and inspected, and finally fed to the mixer via a supply belt.
Filling trolley
Floor scales
Net scales
Gross scales
